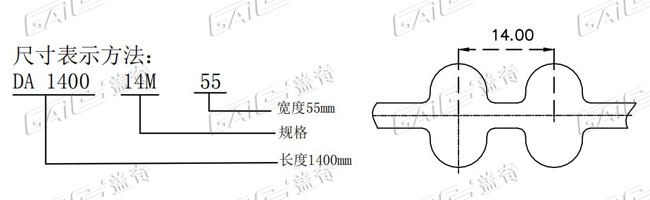

D-14M型雙面齒同步帶
| 規格 | 節線長 | 齒數 | 規格 | 節線長 | 齒數 | |
| 784-14M | 784 | 56 | 1750-14M | 1750 | 125 | |
| 826-14M | 826 | 59 | 1764-14M | 1764 | 126 | |
| 924-14M | 924 | 66 | 1778-14M | 1778 | 127 | |
| 938-14M | 938 | 67 | 1806-14M | 1806 | 129 | |
| 952-14M | 952 | 68 | 1820-14M | 1820 | 130 | |
| 966-14M | 966 | 69 | 1848-14M | 1848 | 132 | |
| 980-14M | 980 | 70 | 1890-14M | 1890 | 135 | |
| 1036-14M | 1036 | 74 | 1904-14M | 1904 | 136 | |
| 1050-14M | 1050 | 75 | 1946-14M | 1946 | 139 | |
| 1064-14M | 1064 | 76 | 1960-14M | 1960 | 140 | |
| 1078-14M | 1078 | 77 | 1988-14M | 1988 | 142 | |
| 1092-14M | 1092 | 78 | 2002-14M | 2002 | 147 | |
| 1120-14M | 1120 | 80 | 2044-14M | 2044 | 146 | |
| 1134-14M | 1134 | 81 | 2100-14M | 2100 | 150 | |
| 1148-14M | 1148 | 82 | 2198-14M | 2198 | 157 | |
| 1190-14M | 1190 | 85 | 2240-14M | 2240 | 160 | |
| 1246-14M | 1246 | 89 | 2310-14M | 2310 | 165 | |
| 1260-14M | 1260 | 90 | 2338-14M | 2338 | 167 | |
| 1288-14M | 1288 | 92 | 2380-14M | 2380 | 170 | |
| 1344-14M | 1344 | 96 | 2450-14M | 2450 | 175 | |
| 1358-14M | 1358 | 97 | 2506-14M | 2506 | 179 | |
| 1400-14M | 1400 | 100 | 2590-14M | 2590 | 185 | |
| 1442-14M | 1442 | 103 | 2660-14M | 2660 | 190 | |
| 1456-14M | 1456 | 104 | 2800-14M | 2800 | 200 | |
| 1470-14M | 1470 | 105 | 2940-14M | 2940 | 210 | |
| 1498-14M | 1498 | 107 | 2968-14M | 2968 | 212 | |
| 1512-14M | 1512 | 108 | 3150-14M | 3150 | 225 | |
| 1540-14M | 1540 | 110 | 3360-14M | 3360 | 240 | |
| 1568-14M | 1568 | 112 | 3500-14M | 3500 | 250 | |
| 1610-14M | 1610 | 115 | 3850-14M | 3850 | 275 | |
| 1638-14M | 1638 | 117 | 4004-14M | 4004 | 286 | |
| 1652-14M | 1652 | 118 | 4326-14M | 4326 | 309 | |
| 1680-14M | 1680 | 120 | 4578-14M | 4578 | 327 | |
| 1736-14M | 1736 | 124 |
訂購需知
1、客戶訂購同步帶時，請查閱以上表格。
2、客戶提供同步帶樣帶，本公司也可按樣帶生產。
3、客戶需要特殊規格型號或特殊性能要求（如阻燃、耐油、耐磨、抗靜電、無毒等）本公司也可盡量滿足客戶的要求，給予定制。
